Pre-Painted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels 20 Years Warranty anti scratch paint

Product Categories
Shandong Decho Building Materials Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Pre-Painted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels 20 Years Warranty anti scratch paint

  • 1
  • 2
  • 3

Brand Name : Decho Building Materials

Model Number : S320GD PRE-PAINTED GAVALUME STEEL

Certification : MILL TEST CERTIFICATE、ISO9001-2008、SGS、BV

Place of Origin : China

MOQ : 25 TONS

Price : USD 700~1050

Payment Terms : L/C, T/T

Supply Ability : 500 tons per day

Delivery Time : 30~45days

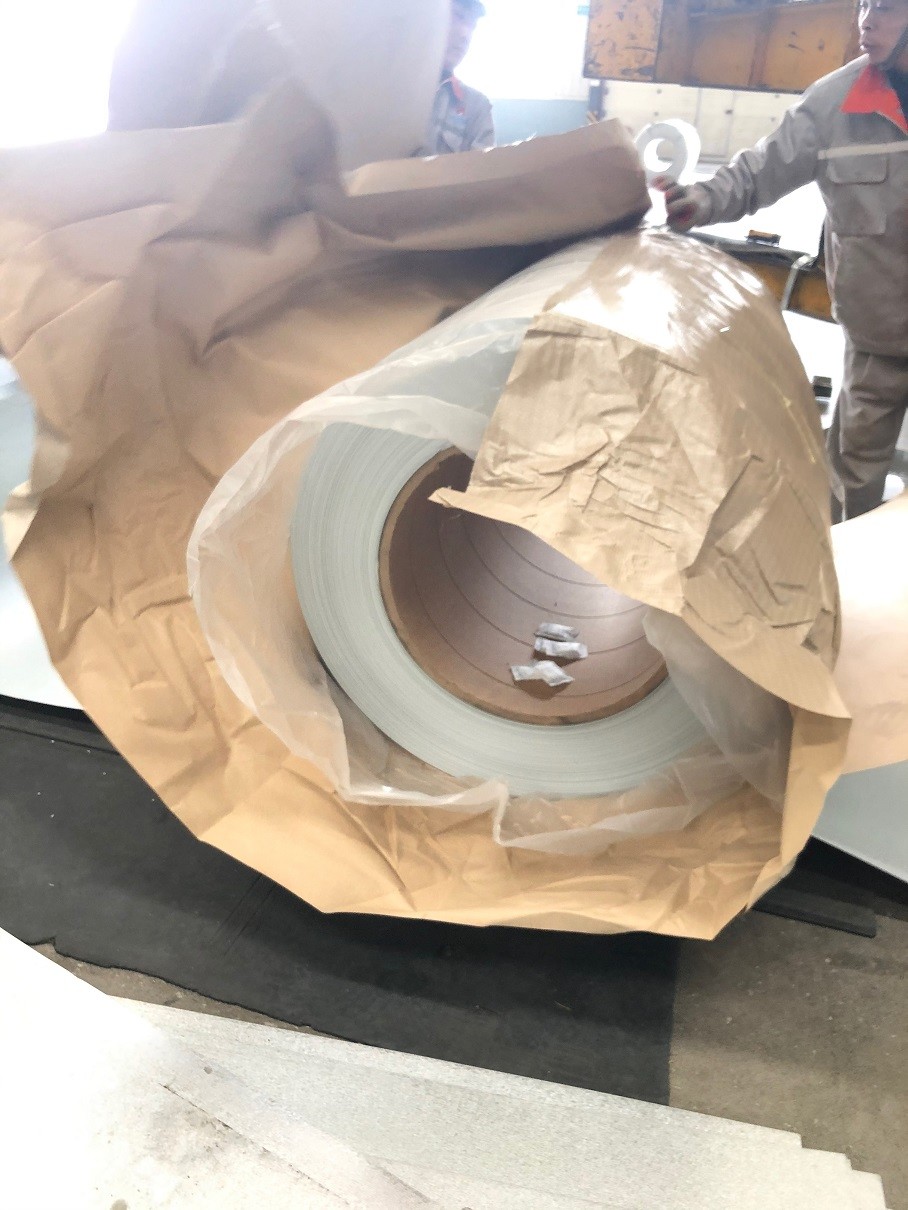

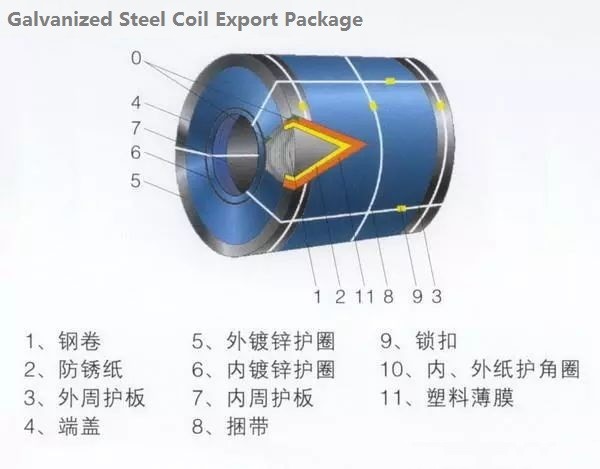

Packaging Details : Standard Exporting Packing(Eye to Side) , No pallet Vertical Packing (Eye to Sky) with Wooden Pallet, Horizontal Packing (Eye to Side) with Wooden Pallet

Color : RED

thickness : 0.5mm~1.2mm

Z-coating : AZ50~180g/㎡

steel grade : S320GD

STEEL GRADE : DX51D

PAINT SYSTEM : SMP

Contact Now

Prepainted Galvalumesteel AZ120 PPGL Steel Coil SMP DX51D For Metal wall panels
Color-coated coils are products made from hot-dip galvanized steel sheet, hot-dip aluminized steel sheet or electrolytically galvanized steel sheet as the base material, which, after surface pretreatment (degreasing and conversion treatment), is coated with one or more layers of colored coating and baked and cured. It is also available in various steel sheet coils painted in different colors, called color-coated coils.
Classification

According to the substrate: cold rolled substrate, hot-dip galvanized substrate, electro-galvanized substrate, aluminum zinc plated substrate, etc.

According to the type of coating: polyester, silicone-modified polyester, vinylidene fluoride (fluorocarbon), plastisol.

According to the color: it can be divided into many kinds according to the user's requirements, such as white-gray, scarlet, sea-orchid, porcelain-orchid, withered-yellow, ivory-white, deep-bean-green, sky-orchid, ivory-white and so on.

According to the surface state: coated board, embossed board, printed board, etc.

Steel Grade:

EN10346-DX51D/ DX52D/ DX53D, S250GD/280GD/350GD/550GD, ASTM A527M, CS-B, SS255-SS550

Paint Brand:

Valpar, AkzoNobel, PPG, Beckers

Paint Coating Patterns:

Gloss Colors - RAL Code

Structural Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
30,33,36,40 0.25 0.9 0.035 0.04 0.2 0.2 0.15 0.06 0.008 0.008 0.025
36T2,45-80 0.25 1.35 0.035 0.04 0.2 0.2 0.15 0.06 0.008 0.008 0.025
45T2 .02- 0.08 .30- 1.0 .03- .07 0.025 .02- .08 0.6 0.2 0.2 0.15 0.06 0.008 0.008 0.025 .01- .03

HSLA Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
45C1 0.22 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
45C2 0.15 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C1 0.23 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C2 & 55C2 0.15 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
55C1 0.25 1.35 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C1 & 65C1 0.26 1.5 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C2 & 65C2 0.15 1.5 0.04 0.04 0.2 0.2 0.15 0.06 0.005 0.005 0.005
70C1 0.26 1.65 0.04 0.04 0.2 0.2 0.15 0.16 0.005 0.005 0.005
70C2 0.15 1.65 0.04 0.04 0.2 0.2 0.15 0.16 0.005 0.005 0.005

Common Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
CSA 0.1 0.6 0.03 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSB 0.02-.15 0.6 0.03 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSC 0.08 0.6 0.1 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
BH 0.012 1.5 0.12 0.03 0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSA 0.1 0.5 0.02 0.035 0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSB 0.02-.15 0.5 0.02 0.03 0.2 0.2 0.15 0.06 0.008 0.008 0.025
DDS 0.06 0.5 0.02 0.025 .01 0.2 0.2 0.15 0.06 0.008 0.008 0.025
EDDS 0.02 0.4 0.02 0.02 .01* 0.2 0.2 0.15 0.06 0.1 0.1 0.15

Pre-Painted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels 20 Years Warranty anti scratch paintPre-Painted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels 20 Years Warranty anti scratch paint
Pre-Painted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels 20 Years Warranty anti scratch paintPre-Painted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels 20 Years Warranty anti scratch paint
Pre-Painted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels 20 Years Warranty anti scratch paint
Pre-Painted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels 20 Years Warranty anti scratch paint
Pre-Painted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels 20 Years Warranty anti scratch paint
